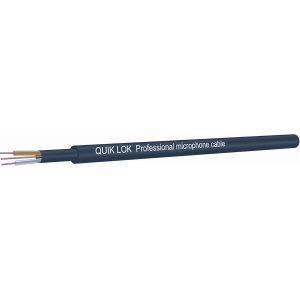

Professional High-Quality noiseless antistatic mono instrument cable.
Available in 100m reels.
Conductor resistance at 20°: <37 Ohm/Km Capacitance: 135Pf/m Insulation resistance at 20°: >10000 Mohm/Km
Working temperature: -30° / +70°
Color: Black
Inner conductor size: "1 x 0.50 mm² ?(20 AWG)"
Strands x conductor: 28 x 0.15 Bare Copper (BC)
Insulation: "FHDPE (Foam High Density Polyethylene) Ø 2.20 mm"
Sub shielding: "100% Conductive PVC"
Main shielding: "95% Tinned Copper Shield (8 x 16 served strands)"
Outer jacket: Antistatic PVC Polyvinyl Chloride - Hardness grade: 60 Shore
Overall diameter: 6.35 mm
Weight: 47 Kg (104.44 lbs) per 1000 m (3280 ft)
